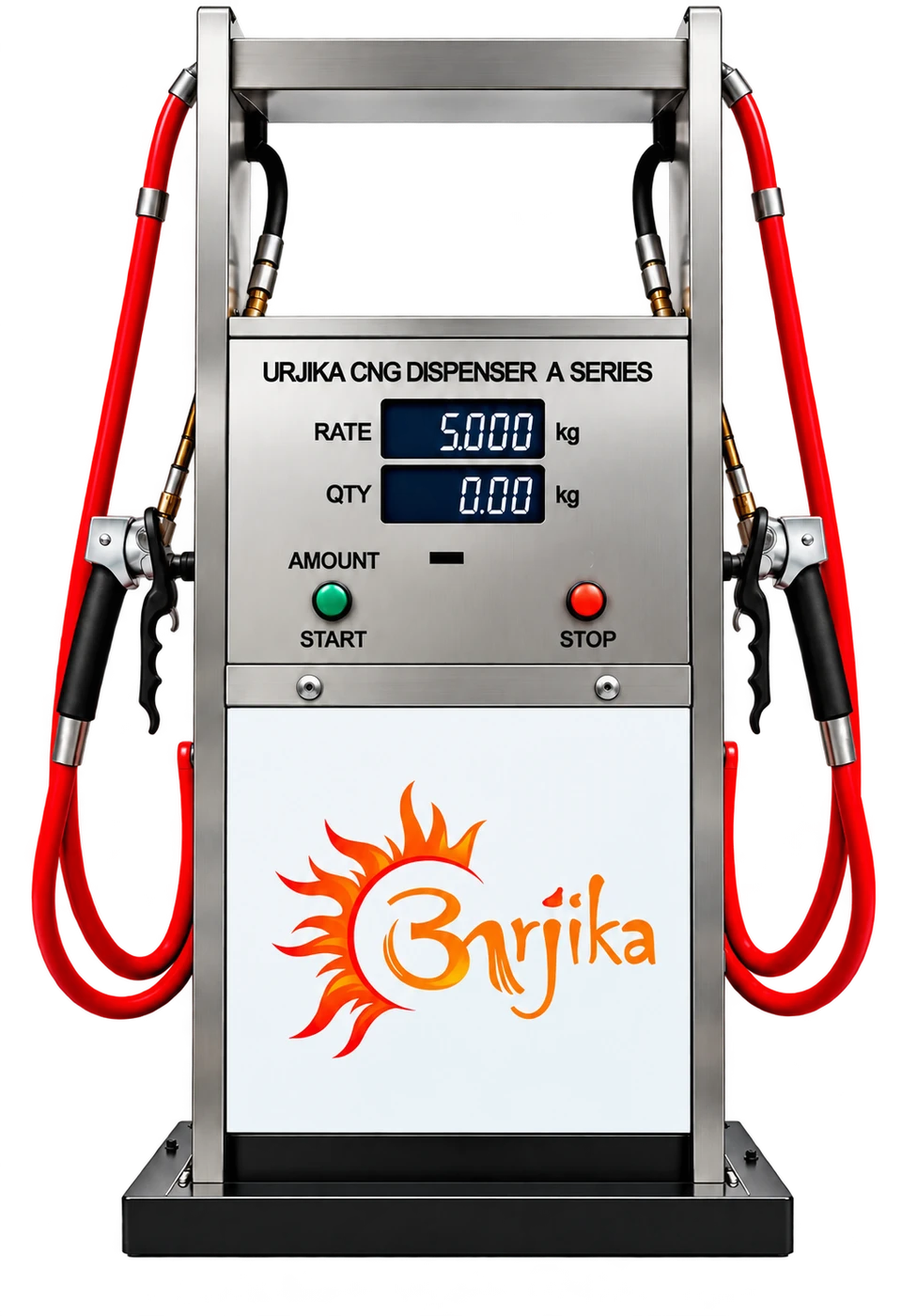

CNG/CBG Dispensers
Car / Auto Dispenser · 15 kg/min · Cars, 3-wheelers and LCVs
Car, combo and bus dispensers — PESO & W&M approved, with Coriolis mass metering, electro-valve sequencing and SCADA connectivity.
PESO & W&M approvedOIML R139
15 kg/min
Car dispenser flow rate
75 kg/min
Bus dispenser flow rate
±1.5%
System accuracy (OIML R139)
5000 psig
Maximum allowable working pressure
Overview
Accurate, fast and certified dispensing
The dispenser is the point where your station earns revenue, so accuracy, speed and uptime matter most. Urjika dispensers use Coriolis mass flowmeters with integral display, electromagnetic valve sequencing from three-bank storage and a high-profile stainless steel cabinet built for Indian forecourts.
Each dispenser is manufactured in-house, approved by PESO and Legal Metrology (W&M), and designed to international standards including NFPA 52, ISO 16923, AGA, NGV 4.2 and OIML R139.
Variants
Car, combo and bus dispensers compared
| Parameter | Car / Auto Dispenser | Combo Dispenser | Bus Dispenser |
|---|---|---|---|
| Application | Cars, 3-wheelers, LCVs | Mixed traffic — cars + buses | Buses & heavy commercial vehicles |
| Arms | Dual arm (two hoses) | Dual arm (car + bus side) | Single delivery arm |
| Max. flow rate | 15 kg/min per hose | 15 kg/min car · 75 kg/min bus | 75 kg/min |
| Sequencing | Three-bank | Three-bank car + single-bank bus | Single-bank |
| Mass flow meters | Two (one each side) | One | One |
| Nozzle | NGV1 + NZS | NGV1 car + bus nozzle | CNG bus nozzle |
| Hose | 3/8" ID fill + 1/4" vent, 3.5 m + 24" | 3/8" ID Fill + 1/4 " Vent, 3.5 m + 24" - Car & 1/2" ID Fill + 1/4 " Vent, 3.5 m + 24" - Bus | 1/2" ID Fill + 1/4 " Vent, 3.5 m + 24" |
| Gas line size | 1/2" | 1/2" / 3/4" | 3/4" |
Technical specifications
Common specifications
Pressure & flow
Fill pressure
200 kg/cm²(g)
Inlet / pressure rating
250–255 kg/cm²(g)
MAWP
5000 psig
Car / auto flow
15 kg/min (nominal)
Bus flow
75 kg/min
Minimum flow
1 kg/min
Metering & accuracy
Principle
Coriolis mass flow with integral display
Batch accuracy (meter)
0.5%
Repeatability
0.25%
System accuracy
±1.5% as per OIML R139
Temperature compensation
Yes
Approvals
PESO & Legal Metrology (W&M)
Hoses, nozzles & safety
Hose
Thermoplastic, electrically conductive, 5000 psi
Breakaway couplings
On fill and vent lines
Nozzles
NGV1 Type 2 Class A, NZS 9/16" probe, bus nozzle
Filtration
High-pressure coalescing filters with DP gauges
Safety
Solenoid shut-off valves, pressure transducers, relief valve
Emergency
Emergency stop, earthing & bonding
Electrical, display & build
Supply
220–230 V AC, 50 Hz
Hazardous area
Class I, Division I, Gas Group D
Control
Electromagnetic, three-bank sequencing
Display
Sale (₹), quantity (kg), unit price (₹/kg) — 6 digits, 2 decimals
Cabinet
High-profile SS 304 (SS 316 on request)
Connectivity
SCADA compatible for real-time monitoring
Why Urjika dispensers
Built for Indian forecourts
PESO & W&M Approved
Certified for commercial sale of CNG and CBG.
Coriolis Accuracy
Direct mass measurement with temperature compensation.
Three-Bank Sequencing
Fills faster and uses storage more efficiently.
Weatherproof Design
Stainless steel cabinet built for Indian conditions.
SCADA Compatible
Real-time monitoring of sales and alarms.
Customizable
Nozzle types, hose lengths, payment/automation modules and branding.
Ideal for
Every kind of CNG customer
Cars & Autos
Retail CNG and CBG outlets.
Company LCV Fleets
Captive fleet refuelling.
Bus Depots
State transport and city bus fleets.
Operational Vehicles
Industrial and municipal vehicles.
FAQ
Frequently asked questions
Q.What is a combo dispenser?
A combo dispenser has a car side at 15 kg/min and a bus side at 75 kg/min in one cabinet, so a station can serve both vehicle types without two separate units.
Q.Are the dispensers approved for commercial sale?
Yes. Our dispensers are PESO and Legal Metrology (W&M) approved, with accuracy as per OIML R139.
Q.Why three-bank sequencing?
The dispenser draws first from the low-pressure bank and switches to medium and high banks as the vehicle fills. This speeds up filling and extracts more gas from station storage.
Q.Can the dispenser be branded?
Yes. Cabinet branding, nozzle types, hose lengths and payment or automation modules can be customized.
Upgrading or building a station?
Talk to us about the right dispenser mix for your traffic.
