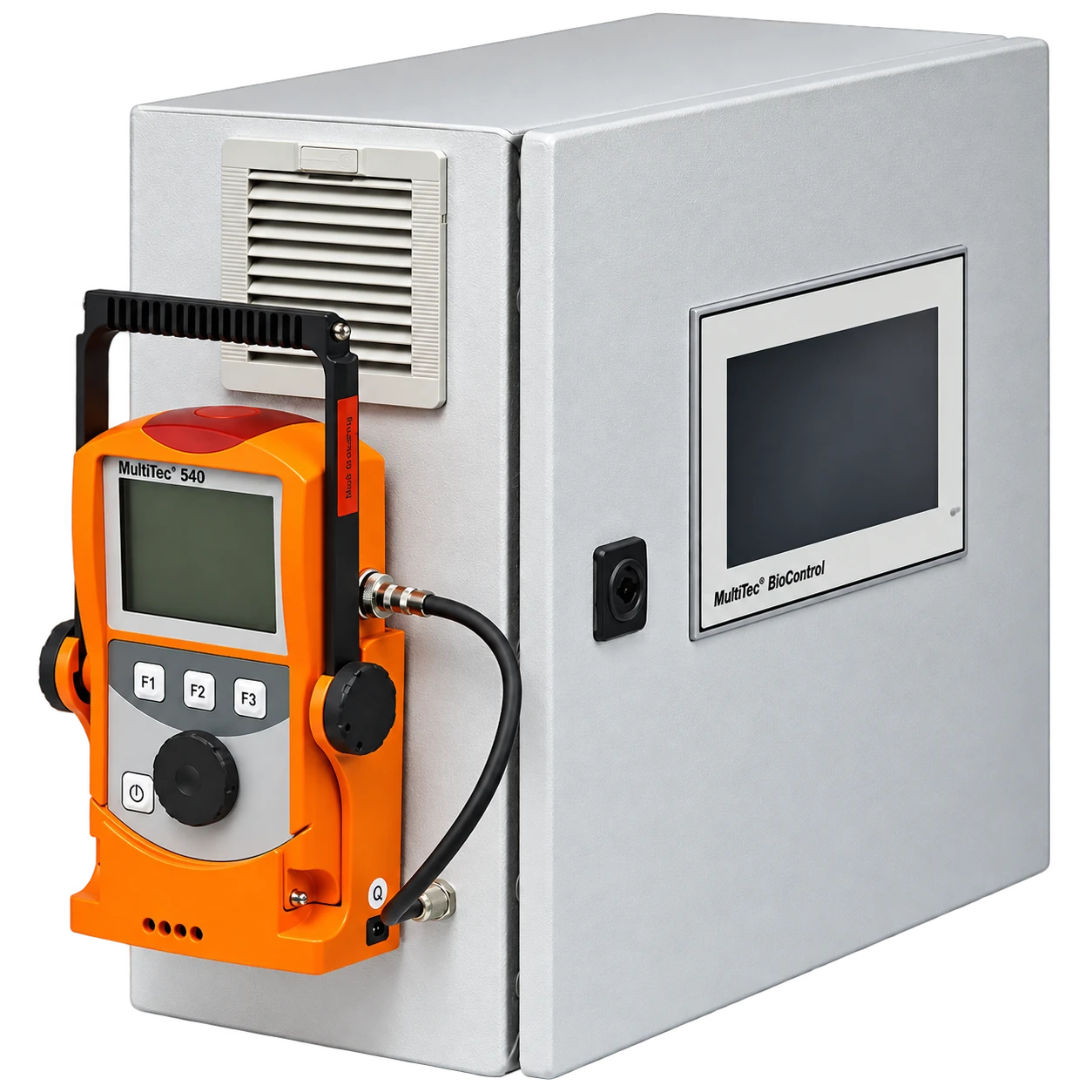

Online & Portable Biogas Analyzers
Continuous 8-channel online analyzers and handheld portable analyzers for CH₄, CO₂, O₂ and H₂S — for process control, quality assurance and safety.
Online: up to 8 pointsPortable: ATEX Zone 1CH₄ · CO₂ · O₂ · H₂S
8
Measuring points on one online analyzer
0.1% vol
CH₄ / CO₂ / O₂ resolution
2 ppm
H₂S resolution
2 types
Online and portable
Overview
Know your gas — at every stage
Biogas composition changes continuously with feedstock and digester conditions. Online analysis of methane, carbon dioxide, oxygen and hydrogen sulphide is essential to control digestion and upgrading, protect engines and compressors, and prove CBG quality before dispatch or grid injection.
Urjika supplies two types of analyzer: a cabinet-mounted online analyzer that monitors up to eight measuring points continuously, and a rugged portable analyzer for spot checks, leak checks and verification in the field.
Two types
Online and portable analyzers
Continuous · Cabinet mounted

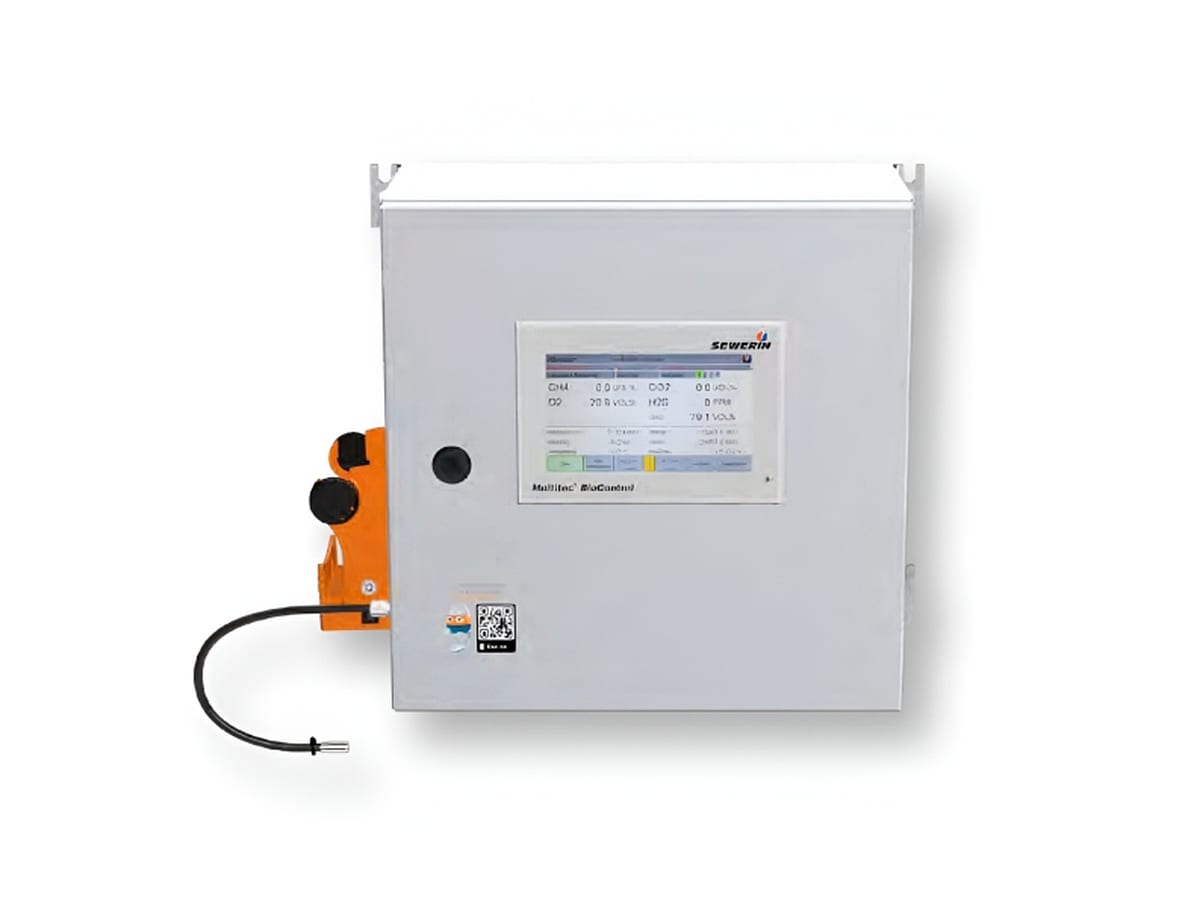

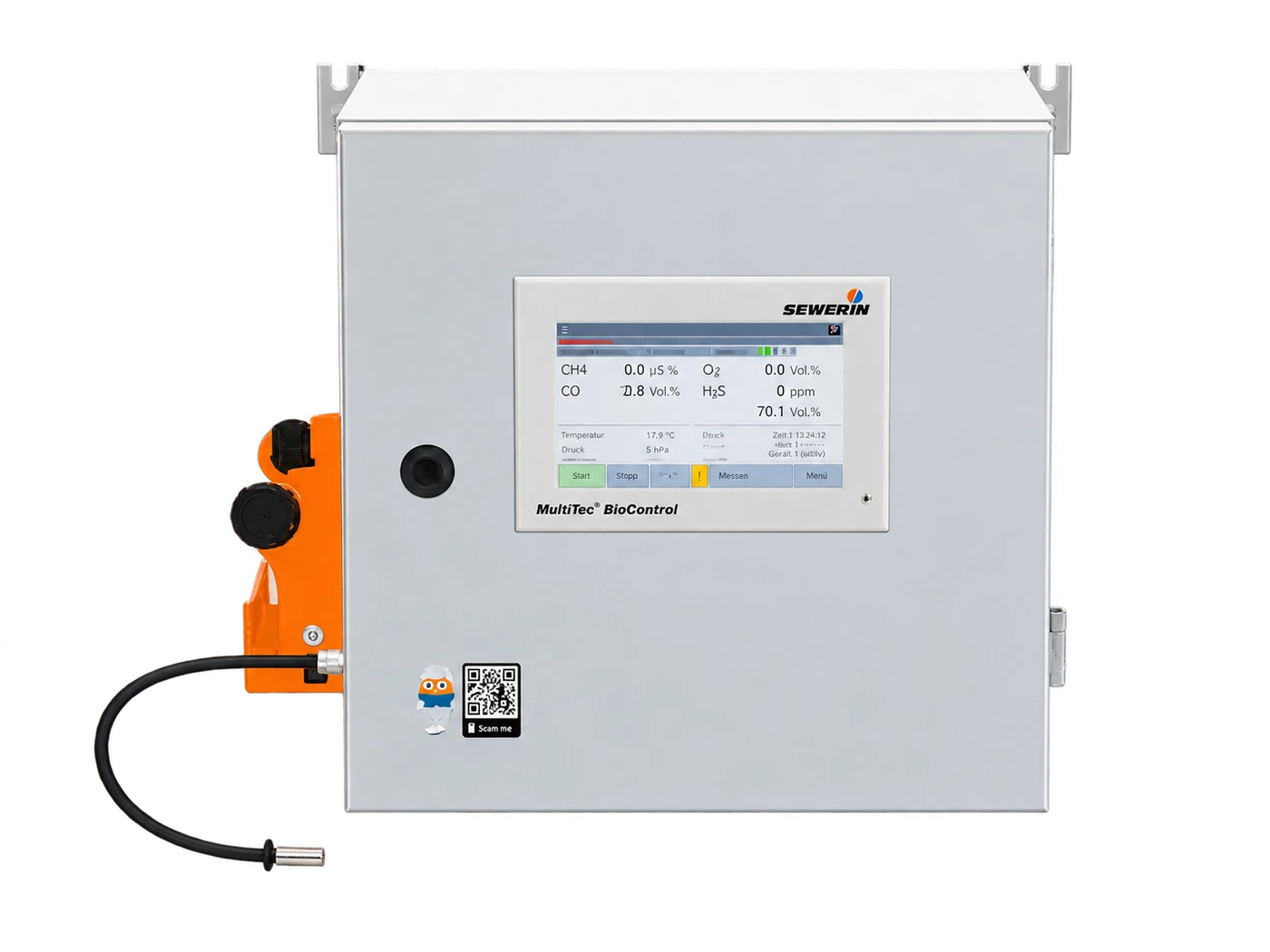

Online Biogas Analyzer
Continuous monitoring of gas composition with measurement values sent to your PLC or SCADA.
Up to 8 measuring locations
CH₄, CO₂, O₂ & H₂S
Fieldbus communication (optional)
Spot checks · Handheld

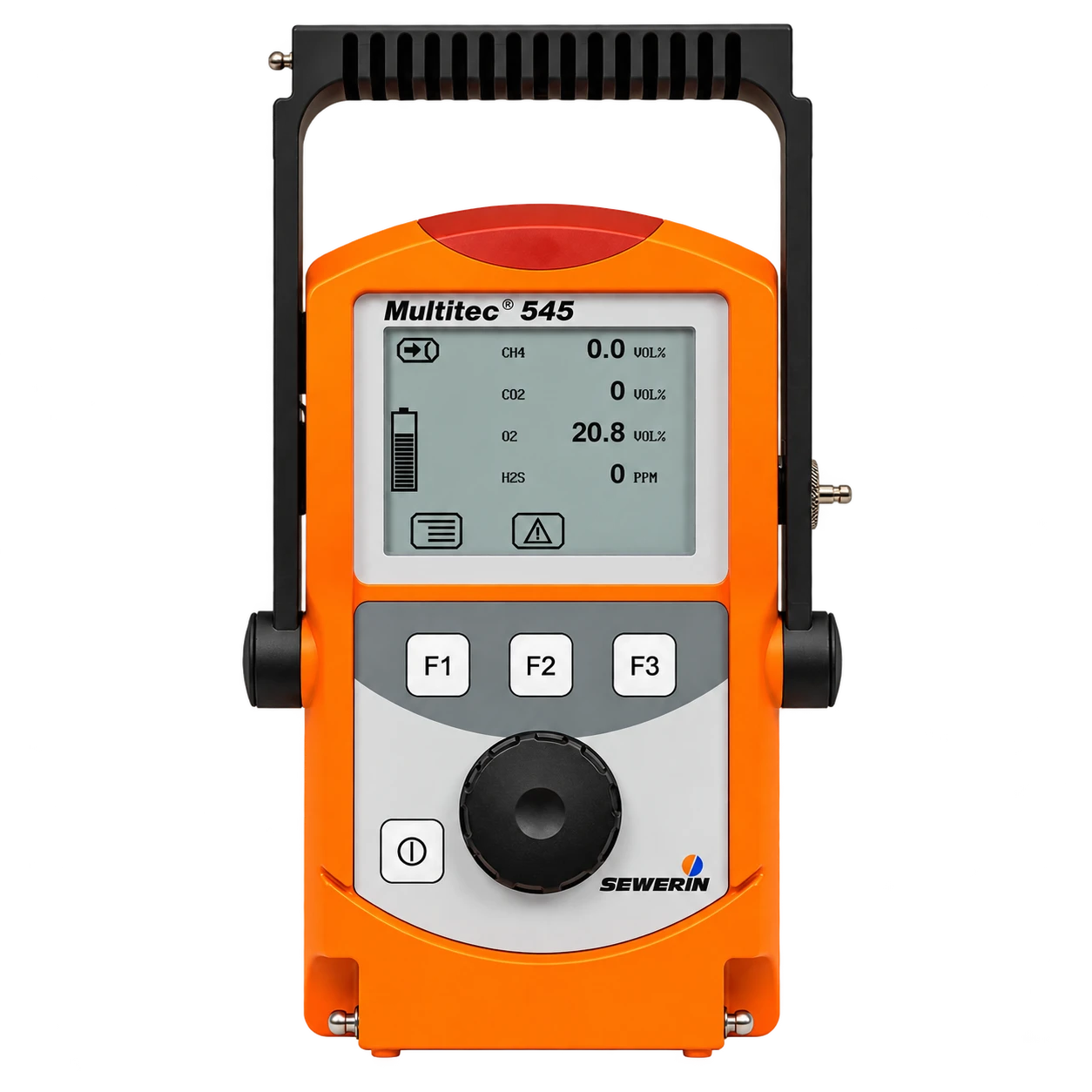

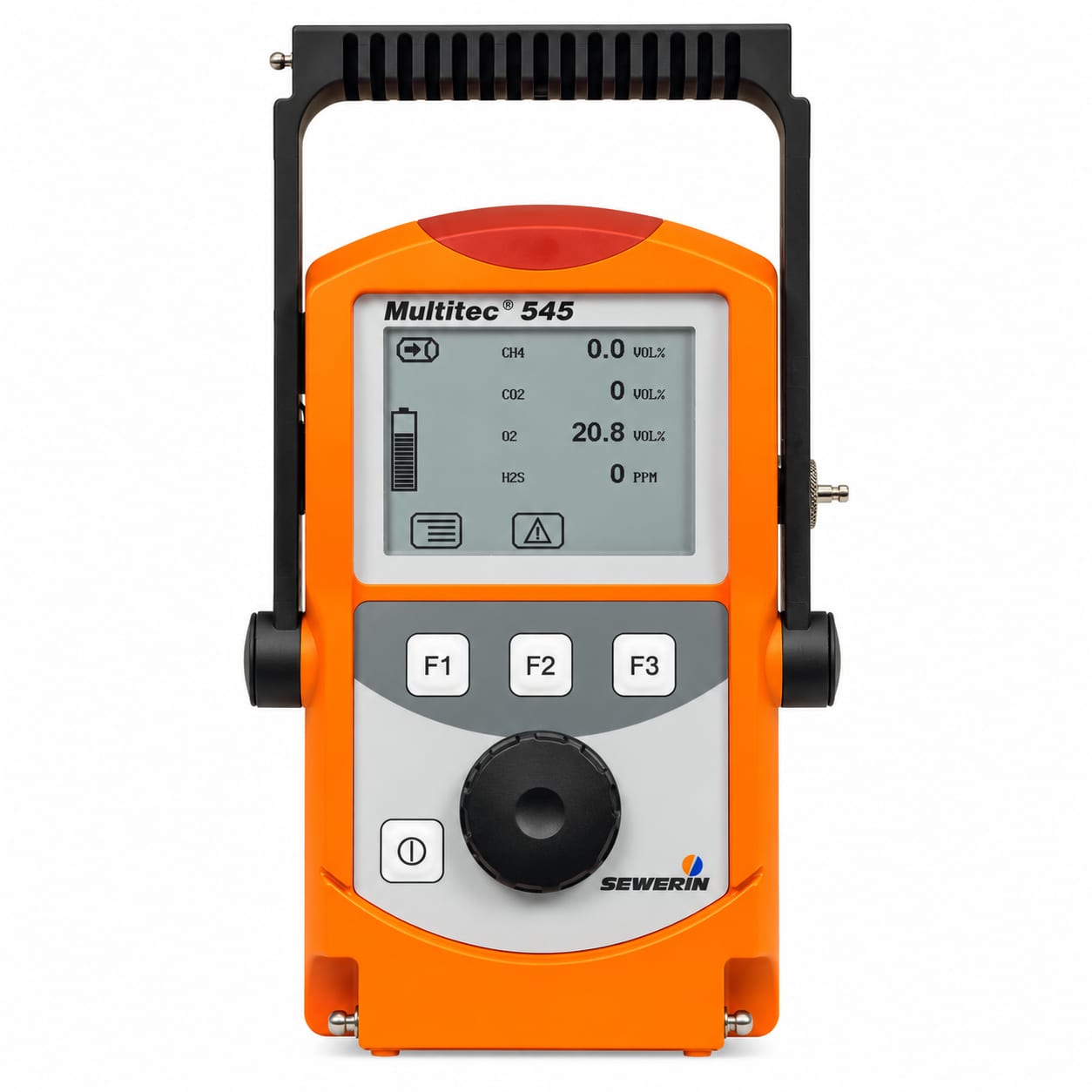

Portable Gas Analyzer
Battery-powered handheld analyzer with built-in pump for sampling and leak checks in hazardous areas.
ATEX certified for Zone 1
CH₄, CO₂, O₂, H₂S & CO
Data logging with USB
Technical specifications
Online and portable analyzers
Online analyzer — measurement
Measured gases
CH₄, CO₂, O₂, H₂S
Measuring locations
Up to 8 (1 / 2 / 4 / 8 channel configurations)
Resolution — CH₄ / CO₂ / O₂
0.1% vol.
Resolution — H₂S
2 ppm
Function
Monitors and analyzes gas composition, provides measurement values
Online analyzer — installation
Humidity environment
< 85% r.h., non-condensing
Outputs
4–20 mA, RS485 Modbus
Fieldbus
Optional PROFIBUS (serial) and PROFINET (industrial Ethernet)
Construction
Cabinet with sample conditioning, filters and rotameters
Mounting
Floor-standing on wheeled stand
Portable analyzer — measurement
CH₄ (infrared)
0–100% vol., 0.1% resolution; ppm range for leak detection
CO₂ (infrared)
0–100% vol., 1% resolution
O₂ (electrochemical)
0–25% vol., 0.1% resolution
H₂S (electrochemical)
0–5,000 ppm, 1 ppm resolution (low range)
CO (electrochemical)
0–500 ppm, 1 ppm resolution
Response time
CH₄ t90 < 17 s
Portable analyzer — device
Certification
ATEX, Zone 1 (II 2G Ex)
Protection
IP54
Operating temperature
−20°C to +40°C
Sampling pump
Built-in, approx. 50 L/h
Data
USB 2.0 interface, 8 MB memory
Power
Rechargeable NiMH or AA batteries, ≥ 6 h operation
Weight
Approx. 1 kg
Applications
Where gas analysis matters
Digester Monitoring
Track methane yield and process stability.
Upgrading Control
Verify CO₂ and H₂S removal across VPSA / membrane.
CBG Quality Assurance
Confirm quality before dispatch or grid injection.
Leak & Safety Checks
Portable checks around compressors, skids and pipelines.
FAQ
Frequently asked questions
Q.Which analyzer do I need — online or portable?
Use an online analyzer for continuous process and quality monitoring. A portable analyzer complements it for spot checks, verification and leak detection. PNGRB guidelines for grid injection expect both continuous online monitoring and a handheld analyser at the plant.
Q.Is the portable analyzer safe in hazardous areas?
Yes. It is ATEX certified for use in Zone 1 hazardous areas.
Q.How many points can one online analyzer monitor?
Up to eight measuring locations, for example digester outlet, upgrading inlet and outlet, and compressor suction.
Q.Can the online analyzer connect to our PLC or SCADA?
Yes. It provides 4–20 mA and RS485 Modbus outputs, with optional PROFIBUS or PROFINET.
Monitoring gas quality at your plant?
Tell us your measuring points — we will configure the right analyzer.
