CNG/CBG Cascades

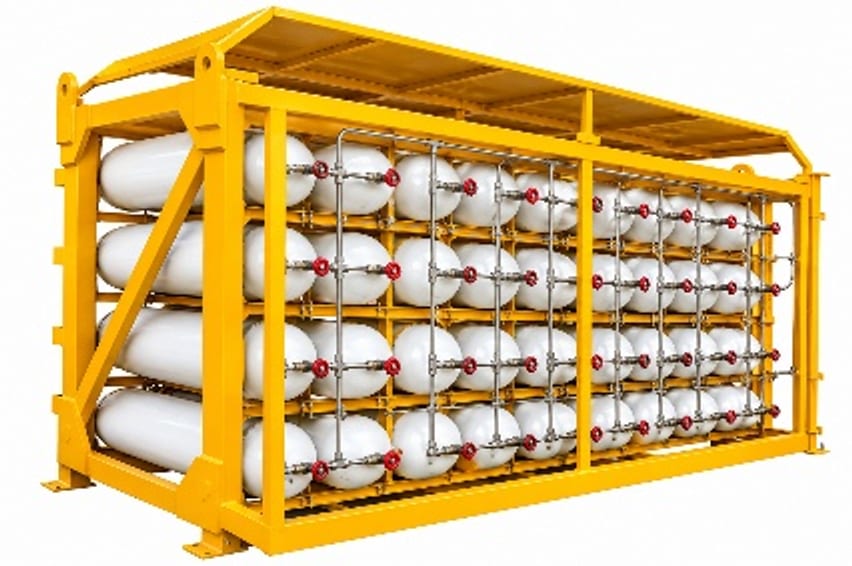

Type 1 CNG/CBG Cascade
All-metal, seamless steel cylinder cascades from 3000 WL to 9600 WL, in 75 WL and 150 WL cylinder configurations, single or three bank.
- Water capacity
- 3000 WL
- Cylinder configuration
- 75 WL × 40 cyl
- Dimensions L × B × H (m)
- 3.47 × 1.86 × 1.82
- Gas carrying capacity @ 250 bar & 15°C
- 600 kg
- Cascade gas utilisation @ 85%
- 510 kg
- Cascade weight
- 5.4 t
- Total weight with gas
- 6.1 t
- Vent manifold
- Indigenous
₹12,50,000Price per unit
Our sales team confirms taxes, freight, lead time and delivery after you place your order. For more on this range, see the CNG/CBG Cascades page.
Compare models
All Type 1 CNG/CBG Cascade models and prices
| Capacity | Bank | Pressure manifold | Dimensions L × B × H (m) | Gas carrying capacity @ 250 bar & 15°C | Cascade gas utilisation @ 85% | Cascade weight | Total weight with gas | Price |
|---|---|---|---|---|---|---|---|---|
| 3000 WL · 75 WL × 40 cyl | Single bank | Dawsons-Tech | 3.47 × 1.86 × 1.82 | 600 kg | 510 kg | 5.4 t | 6.1 t | ₹12,50,000 |
| 3000 WL · 75 WL × 40 cyl | Single bank | Parker | 3.47 × 1.86 × 1.82 | 600 kg | 510 kg | 5.4 t | 6.1 t | ₹13,70,000 |
| 3000 WL · 75 WL × 40 cyl | Single bank | DK-Lok | 3.47 × 1.86 × 1.82 | 600 kg | 510 kg | 5.4 t | 6.1 t | ₹13,80,000 |
| 3000 WL · 75 WL × 40 cyl | Three bank | Dawsons-Tech | 3.47 × 1.86 × 1.82 | 600 kg | 510 kg | 5.4 t | 6.1 t | ₹13,10,000 |
| 3000 WL · 75 WL × 40 cyl | Three bank | Parker | 3.47 × 1.86 × 1.82 | 600 kg | 510 kg | 5.4 t | 6.1 t | ₹15,00,000 |
| 3000 WL · 75 WL × 40 cyl | Three bank | DK-Lok | 3.47 × 1.86 × 1.82 | 600 kg | 510 kg | 5.4 t | 6.1 t | ₹13,20,000 |
| 3000 WL · 150 WL × 20 cyl | Single bank | Dawsons-Tech | 2.6 × 2.13 × 2.2 | 600 kg | 510 kg | 5.2 t | 5.8 t | ₹12,00,000 |
| 3000 WL · 150 WL × 20 cyl | Single bank | Parker | 2.6 × 2.13 × 2.2 | 600 kg | 510 kg | 5.2 t | 5.8 t | ₹12,80,000 |
| 3000 WL · 150 WL × 20 cyl | Three bank | Dawsons-Tech | 2.6 × 2.13 × 2.2 | 600 kg | 510 kg | 5.2 t | 5.8 t | ₹13,30,000 |
| 3000 WL · 150 WL × 20 cyl | Three bank | Parker | 2.6 × 2.13 × 2.2 | 600 kg | 510 kg | 5.2 t | 5.8 t | ₹13,60,000 |
| 4500 WL · 75 WL × 60 cyl | Single bank | Dawsons-Tech | 4.9 × 1.86 × 1.88 | 900 kg | 765 kg | 8.2 t | 9.1 t | ₹17,70,000 |
| 4500 WL · 75 WL × 60 cyl | Single bank | Parker | 4.9 × 1.86 × 1.88 | 900 kg | 765 kg | 8.2 t | 9.1 t | ₹19,60,000 |
| 4500 WL · 75 WL × 60 cyl | Single bank | DK-Lok | 4.9 × 1.86 × 1.88 | 900 kg | 765 kg | 8.2 t | 9.1 t | ₹17,70,000 |
| 4500 WL · 75 WL × 60 cyl | Three bank | Dawsons-Tech | 4.9 × 1.86 × 1.88 | 900 kg | 765 kg | 8.2 t | 9.1 t | ₹17,80,000 |
| 4500 WL · 75 WL × 60 cyl | Three bank | Parker | 4.9 × 1.86 × 1.88 | 900 kg | 765 kg | 8.2 t | 9.1 t | ₹20,20,000 |
| 4500 WL · 75 WL × 60 cyl | Three bank | DK-Lok | 4.9 × 1.86 × 1.88 | 900 kg | 765 kg | 8.2 t | 9.1 t | ₹17,90,000 |
| 4500 WL · 150 WL × 30 cyl | Single bank | Dawsons-Tech | 3.6 × 2.13 × 2.2 | 900 kg | 765 kg | 7.74 t | 8.64 t | ₹15,90,000 |
| 4500 WL · 150 WL × 30 cyl | Single bank | Parker | 3.6 × 2.13 × 2.2 | 900 kg | 765 kg | 7.74 t | 8.64 t | ₹17,00,000 |
| 4500 WL · 150 WL × 30 cyl | Single bank | DK-Lok | 3.6 × 2.13 × 2.2 | 900 kg | 765 kg | 7.74 t | 8.64 t | ₹16,40,000 |
| 4500 WL · 150 WL × 30 cyl | Single bank | Hy-Lok | 3.6 × 2.13 × 2.2 | 900 kg | 765 kg | 7.74 t | 8.64 t | ₹16,10,000 |
| 4500 WL · 150 WL × 30 cyl | Three bank | Dawsons-Tech | 3.6 × 2.13 × 2.2 | 900 kg | 765 kg | 7.74 t | 8.64 t | ₹16,40,000 |
| 4500 WL · 150 WL × 30 cyl | Three bank | Parker | 3.6 × 2.13 × 2.2 | 900 kg | 765 kg | 7.74 t | 8.64 t | ₹18,50,000 |
| 4500 WL · 150 WL × 30 cyl | Three bank | DK-Lok | 3.6 × 2.13 × 2.2 | 900 kg | 765 kg | 7.74 t | 8.64 t | ₹17,30,000 |
| 4500 WL · 150 WL × 30 cyl | Three bank | Hy-Lok | 3.6 × 2.13 × 2.2 | 900 kg | 765 kg | 7.74 t | 8.64 t | ₹16,70,000 |
| 5400 WL · 150 WL × 36 cyl | Single bank | Dawsons-Tech | 3.87 × 2.13 × 2.2 | 1080 kg | 918 kg | 9.3 t | 10.38 t | ₹18,90,000 |
| 5400 WL · 150 WL × 36 cyl | Single bank | Parker | 3.87 × 2.13 × 2.2 | 1080 kg | 918 kg | 9.3 t | 10.38 t | ₹20,20,000 |
| 5400 WL · 150 WL × 36 cyl | Single bank | Hy-Lok | 3.87 × 2.13 × 2.2 | 1080 kg | 918 kg | 9.3 t | 10.38 t | ₹19,10,000 |
| 5400 WL · 150 WL × 36 cyl | Three bank | Dawsons-Tech | 3.87 × 2.13 × 2.2 | 1080 kg | 918 kg | 9.3 t | 10.38 t | ₹19,30,000 |
| 5400 WL · 150 WL × 36 cyl | Three bank | Parker | 3.87 × 2.13 × 2.2 | 1080 kg | 918 kg | 9.3 t | 10.38 t | ₹20,80,000 |
| 6000 WL · 150 WL × 40 cyl | Single bank | Dawsons-Tech | 4.33 × 2.13 × 2.2 | 1200 kg | 1020 kg | 10.3 t | 11.5 t | ₹21,50,000 |
| 6000 WL · 150 WL × 40 cyl | Single bank | Parker | 4.33 × 2.13 × 2.2 | 1200 kg | 1020 kg | 10.3 t | 11.5 t | ₹23,10,000 |
| 6000 WL · 150 WL × 40 cyl | Single bank | Hy-Lok | 4.33 × 2.13 × 2.2 | 1200 kg | 1020 kg | 10.3 t | 11.5 t | ₹21,80,000 |
| 6600 WL · 150 WL × 44 cyl | Single bank | Dawsons-Tech | 5.08 × 2.14 × 2.2 | 1320 kg | 1122 kg | 11 t | 12.32 t | ₹23,30,000 |
| 6600 WL · 150 WL × 44 cyl | Single bank | Parker | 5.08 × 2.14 × 2.2 | 1320 kg | 1122 kg | 11 t | 12.32 t | ₹24,90,000 |
| 6600 WL · 150 WL × 44 cyl | Single bank | Hy-Lok | 5.08 × 2.14 × 2.2 | 1320 kg | 1122 kg | 11 t | 12.32 t | ₹23,60,000 |
| 7050 WL · 150 WL × 47 cyl | Three bank | Dawsons-Tech | On request | 1410 kg | 1198.5 kg | On request | On request | ₹25,20,000 |
| 7050 WL · 150 WL × 47 cyl | Three bank | Parker | On request | 1410 kg | 1198.5 kg | On request | On request | ₹27,00,000 |
| 7200 WL · 150 WL × 48 cyl | Single bank | Dawsons-Tech | 5.1 × 2.13 × 2.2 | 1440 kg | 1224 kg | 12.36 t | 13.8 t | ₹25,30,000 |
| 7200 WL · 150 WL × 48 cyl | Single bank | Parker | 5.1 × 2.13 × 2.2 | 1440 kg | 1224 kg | 12.36 t | 13.8 t | ₹26,80,000 |
| 7200 WL · 150 WL × 48 cyl | Single bank | Hy-Lok | 5.1 × 2.13 × 2.2 | 1440 kg | 1224 kg | 12.36 t | 13.8 t | ₹25,60,000 |
| 7800 WL · 150 WL × 52 cyl | Single bank | Dawsons-Tech | 5.6 × 2.14 × 2.3 | 1560 kg | 1326 kg | 13.42 t | 14.98 t | ₹26,90,000 |
| 7800 WL · 150 WL × 52 cyl | Single bank | Parker | 5.6 × 2.14 × 2.3 | 1560 kg | 1326 kg | 13.42 t | 14.98 t | ₹28,50,000 |
| 9000 WL · 150 WL × 60 cyl | Single bank | Dawsons-Tech | 6.4 × 2.13 × 2.3 | 1800 kg | 1530 kg | 15.76 t | 17.56 t | ₹31,40,000 |
| 9000 WL · 150 WL × 60 cyl | Single bank | Parker | 6.4 × 2.13 × 2.3 | 1800 kg | 1530 kg | 15.76 t | 17.56 t | ₹33,40,000 |
| 9000 WL · 150 WL × 60 cyl | Single bank | Hy-Lok | 6.4 × 2.13 × 2.3 | 1800 kg | 1530 kg | 15.76 t | 17.56 t | ₹31,90,000 |
| 9000 WL · 150 WL × 60 cyl | Three bank | Dawsons-Tech | 6.4 × 2.13 × 2.3 | 1800 kg | 1530 kg | 15.76 t | 17.56 t | ₹31,60,000 |
| 9000 WL · 150 WL × 60 cyl | Three bank | Parker | 6.4 × 2.13 × 2.3 | 1800 kg | 1530 kg | 15.76 t | 17.56 t | ₹33,80,000 |
| 9600 WL · 150 WL × 66 cyl | Single bank | Dawsons-Tech | 6.9 × 2.14 × 2.3 | 1980 kg | 1683 kg | 16.5 t | 18.48 t | ₹33,10,000 |
| 9600 WL · 150 WL × 66 cyl | Single bank | Parker | 6.9 × 2.14 × 2.3 | 1980 kg | 1683 kg | 16.5 t | 18.48 t | ₹35,00,000 |
| 9600 WL · 150 WL × 66 cyl | Three bank | Dawsons-Tech | 6.9 × 2.14 × 2.3 | 1980 kg | 1683 kg | 16.5 t | 18.48 t | ₹33,70,000 |
| 9600 WL · 150 WL × 66 cyl | Three bank | Parker | 6.9 × 2.14 × 2.3 | 1980 kg | 1683 kg | 16.5 t | 18.48 t | ₹36,20,000 |
Common to all models
- Vent manifold
- Indigenous
